We focus on the research and development of new technologies to provide you with the most affordable 3d products. We have more than 10,000 square meters of standardized factory buildings. Hope that more and more 3D enthusiasts and people can enjoy the convenience and happiness brought by zunsun 3D technology.
Product Paramenters
Model: DTRY C2 | Print material:405nm UV sensitive resin |
Colour : Black | Support file format test:ctb/STL/OBJ |
Machine material : Sheet metal | Chassis constant temperature system:Optional |
molding technology:LCD | operating system:Windows series/Mac OS/Linux |
Printing accuracy:±0.05mm | printing platform:aluminum alloy |

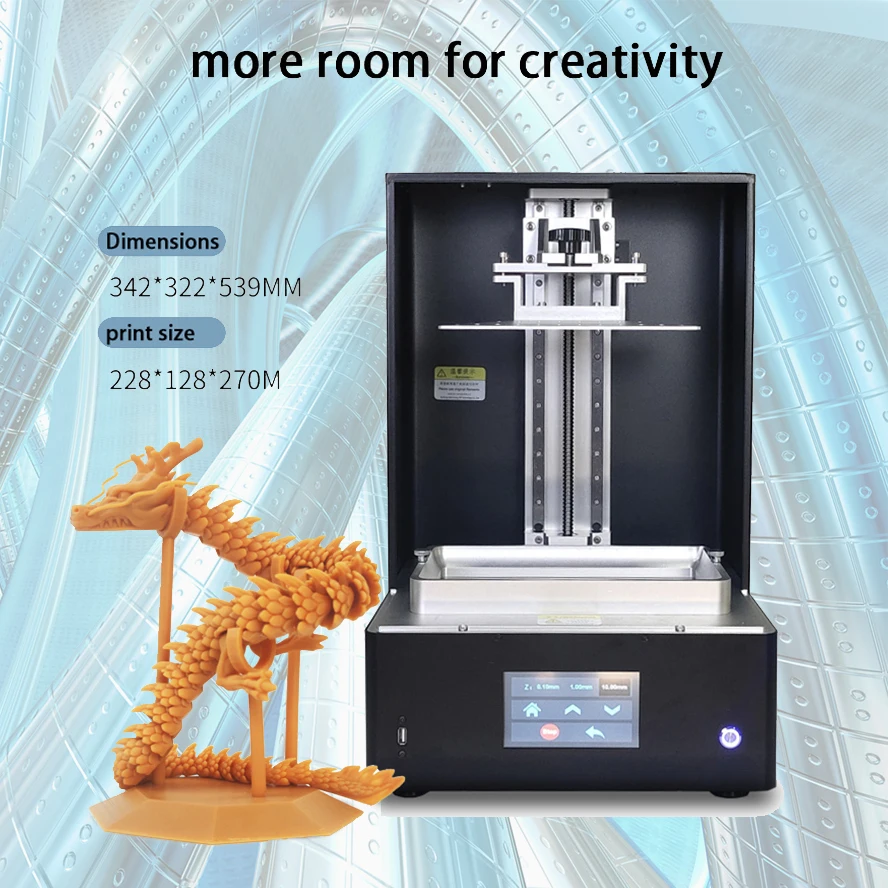

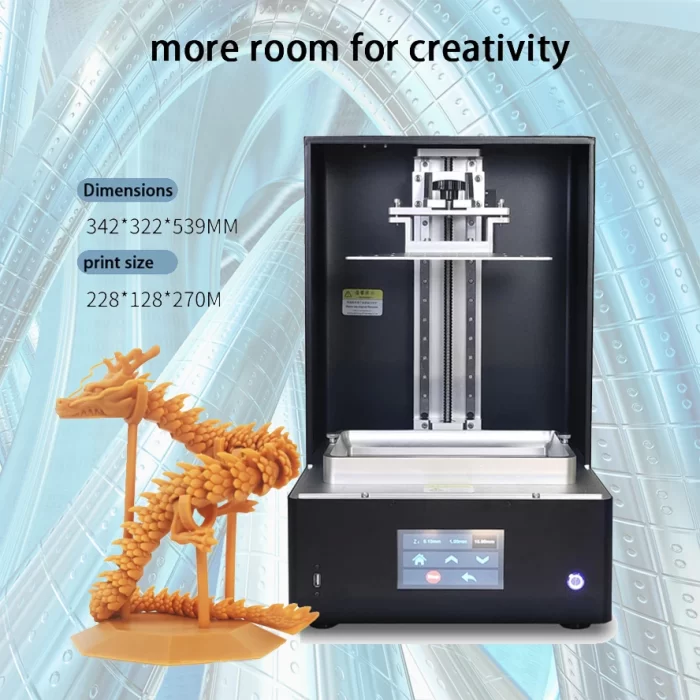

Forming size:228×128×270mm | Machine size : 400×380×690mm |
motor driven:Closed-loop 52 motor + external drive | Machine weight : 25.5KG |
Printing method :SD card/USB | Display : 5 inch full color touch screen |
Printing speed :15-40 (height) mm/h | Leveling: Factory free leveling/manual leveling |
screen language:Chinese/English | Printing platform : Hot bed |
Support slicing software:CHITU Box | XY (LCD) resolution:8K（7680*4320） |
Power supply：220V/110V 240W | Z axis positioning accuracy :0.00125mm |

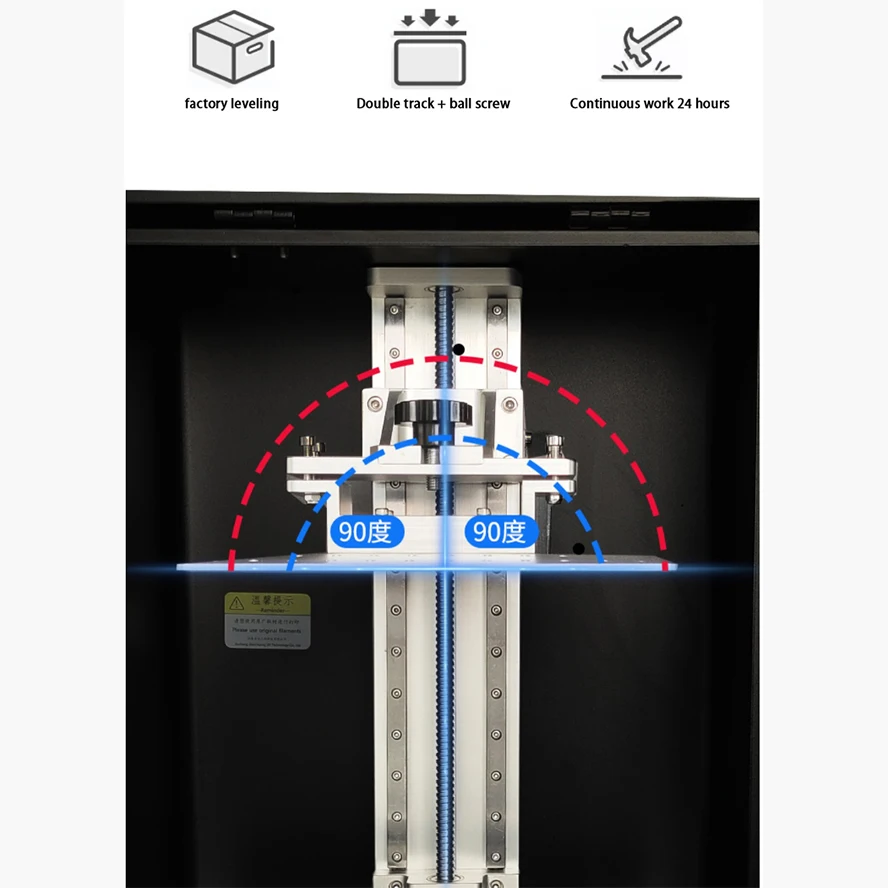

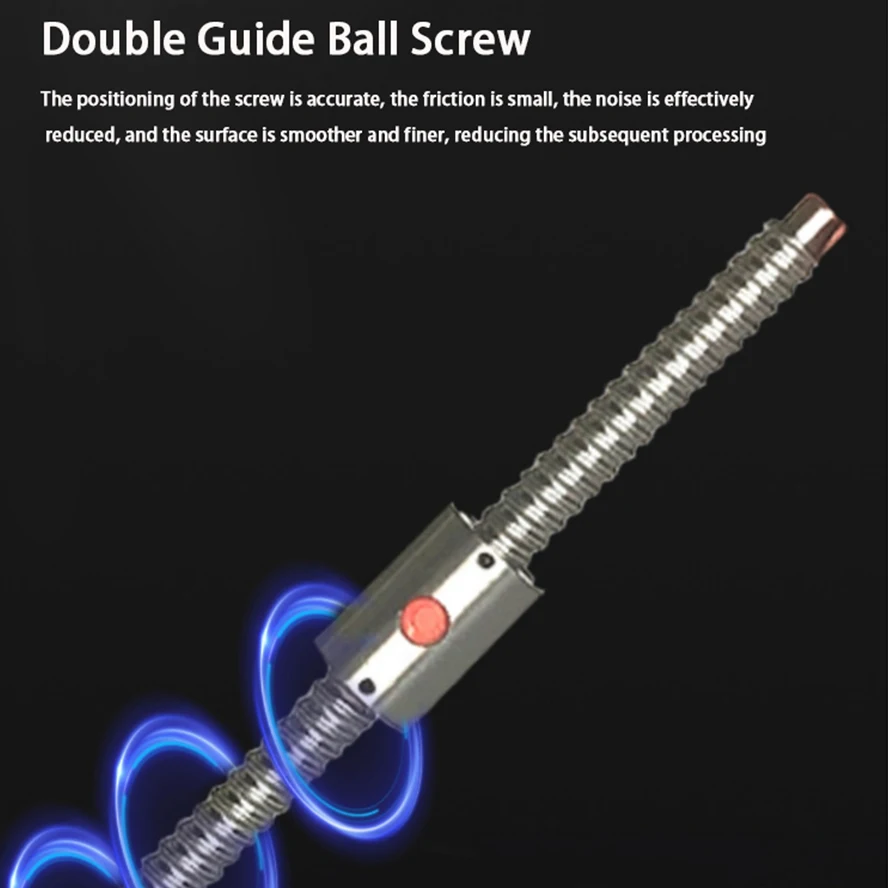

Working environment ：5-40 ℃ Humidity: 20-60% | Z-axis guide rail:Double linear guide + ball screw |
Product Description
Slotted spike design
Easy to place on the table without worrying about staining the release liner
Unique duct design
Reduce screen printing temperature and increase screen life
5 inch touch screen
Human-computer interaction, easy operation
Standard nfep release film
Reduce release force, improve printing speed and effect
Pure sheet metal integrated constant temperature airtight chassis
Sheet metal integral molding, stable structure, less shaking during printing, better printing effect and longer service lifeApplications
L1-2328C
Nozzle diameter:0.4mm (optional 0.2/0.3/0.5/0.6/0.8mm)
Printing accuracy: ±0.1mm
printing speed: 20-150mm/s
Forming size: 235*235*280mm
Machine size: 372*404*515mm
machine weight : 9.2KG
platform leveling : One-button automatic leveling/manual leveling
printing platform:Metal aluminum plate + ab surface sticker
laser engraving : optional
WiFi control : optional
Pause to continue printing : support
Continuous printing after power failure: support
Material break detection: support
air circulation: none
In-chassis none:
P2S-2626G single head（double head）
Nozzle diameter: 0.4mm (optional 0.2/0.3/0.5/0.6/0.8mm)
Printing accuracy: ±0.1mm
printing speed: 20-150mm/s
Forming size: 260*260*260mm
Machine size: 450*424*560mm
machine weight : 21KG
platform leveling:One-button automatic leveling/manual leveling
printing platform:Metal aluminum plate + ab surface sticker
printing speed: 20-150mm/s
Forming size: 260*260*260mm
Machine size: 450*424*560mm
machine weight : 21KG
platform leveling:One-button automatic leveling/manual leveling
printing platform:Metal aluminum plate + ab surface sticker
laser engraving :optional
WiFi control : optional
Pause to continue printing : support
Continuous printing after power failure: support
Material break detection: support
air circulation: support
In-chassis lighting: support
WiFi control : optional
Pause to continue printing : support
Continuous printing after power failure: support
Material break detection: support
air circulation: support
In-chassis lighting: support
P3-3040D–single head（double head）
Nozzle diameter: 0.4mm (optional 0.2/0.3/0.5/0.6/0.8mm)
Printing accuracy: ±0.1mm
printing speed: 20-200mm/s
Forming size: 300*300*400mm
Machine size: 504*470*765mm
machine weight : 42KG
platform leveling : One-button automatic leveling/manual leveling
printing platform : Metal aluminum plate + lattice glass
laser engraving : optional
WiFi control : optional
Pause to continue printing : support
Continuous printing after power failure: support
Material break detection: support
air circulation: support
In-chassis lighting: support
printing speed: 20-200mm/s
Forming size: 300*300*400mm
Machine size: 504*470*765mm
machine weight : 42KG
platform leveling : One-button automatic leveling/manual leveling
printing platform : Metal aluminum plate + lattice glass
laser engraving : optional
WiFi control : optional
Pause to continue printing : support
Continuous printing after power failure: support
Material break detection: support
air circulation: support
In-chassis lighting: support
DTRY C2
molding technology:LCD (Screen Light Curing Molding)
Printing accuracy: ±0.05mm
printing speed: 15-30 (height) mm/h
Forming size: 228×128×270mm
motor driven: 42 stepper motor
Machine size: 342×322×539mm
machine weight: 19KG
Tendency to consumables: 405nm UV sensitive resin
DTRY C2X
molding technology: LCD (Screen Light Curing Molding)
Printing accuracy: ±0.05mm
printing speed: 15-35 (height) mm/h
Forming size: 228×128×270mm
motor driven: 52 motors + external drive
Machine size: 342×322×539mm
machine weight: 19KG
Tendency to consumables: 405nm UV sensitive resin
printing speed: 15-35 (height) mm/h
Forming size: 228×128×270mm
motor driven: 52 motors + external drive
Machine size: 342×322×539mm
machine weight: 19KG
Tendency to consumables: 405nm UV sensitive resin
DTRY C2X PRO
molding technology: LCD (Screen Light Curing Molding)
Printing accuracy: ±0.05mm
printing speed: 15-40 (height) mm/h
Forming size: 228×128×270mm
motor driven: Closed-loop 52 motor + external drive
Machine size: 342×322×539mm
machine weight: 19KG
Tendency to consumables: 405nm UV sensitive resin
printing speed: 15-40 (height) mm/h
Forming size: 228×128×270mm
motor driven: Closed-loop 52 motor + external drive
Machine size: 342×322×539mm
machine weight: 19KG
Tendency to consumables: 405nm UV sensitive resin
Company Profile
MAKE PRINTING BORDERLESS ONE-STOP EQUIPMENT AND ACCESSORIES PROVIDERS
1:International high tech enterprise focusing on research and development, production, sales, exporting
2:Developing new products to meet more production lines, and OEM service is provided
3:Complete product after-sales information,24 hours online
2:Developing new products to meet more production lines, and OEM service is provided
3:Complete product after-sales information,24 hours online
Product packaging
1. Standard wooden box packing
2. Sea, air and land transportation are optional
3. Free logistics insurance is provided to ensure the safety of goods during transportation
2. Sea, air and land transportation are optional
3. Free logistics insurance is provided to ensure the safety of goods during transportation
Shipped in carton/wooden case, well packaged 1PC/CTN;
Carton Size: 400×380×690mm
G.W.: 25.5kgs
Carton Size: 400×380×690mm
G.W.: 25.5kgs
FAQ
1. Are you a manufacturing company or a trading company?We are a manufacturer focusing on developing simple and affordable 3D printers, located in Zhengzhou, with a professional R&D team and after-sales team.2. I am new to 3D printer technology. Can you teach me how to use a 3D printer?Absolutely. We have professional technical engineers and teaching videos to serve you. The machine is automatic and easy to operate.3. What is your main business?zunsun specializes in the production of cost-effective 3D printers, inkjet printers, laser engraving machines and other small machinery. 4. Do you provide OEM/ODM service?Yes, we accept OEM/ODM, our professional R&D team will provide you with the best 3d printer solution. 5. Do you provide samples?Samples can be provided according to the items you need. Welcome to try our products for yourself! 6. Do you provide overseas technical support?We provide 24 hours online support for our customers. If you need help, please feel free to contact us. 7. What is your delivery time?The delivery time depends on your order quantity and specific requirements. Our management supports us to ensure delivery time. 8. What shipping method do you provide?zunsun cooperates with a wide range of carriers to ensure your order arrives on time, such as: DHL, FedEx, EMS, UPS and sea freight, etc. 9. What is the warranty of your products?We back our products with a 1-year warranty.
